Top-hung vs. bottom-rolling bi-fold door systems: What’s the difference?

At Debar, one of the most common questions we hear from fabricators, installers and homeowners is whether a top-hung or bottom-rolling bi-fold door system is the better option. The answer is not always straightforward because both systems have strengths depending on the application, the size of the opening and the overall structural requirements of the project.

Understanding the difference between the two systems is essential before specifying or installing any bi-fold door. The way the doors carry their weight has a direct impact on operation, structural support, maintenance and long-term performance.

As specialists in bi-fold hardware and complete door systems, we work with customers every day to help them choose the right setup for their project. Here is our guide to the key differences between top-hung and bottom-rolling bi-fold door systems.

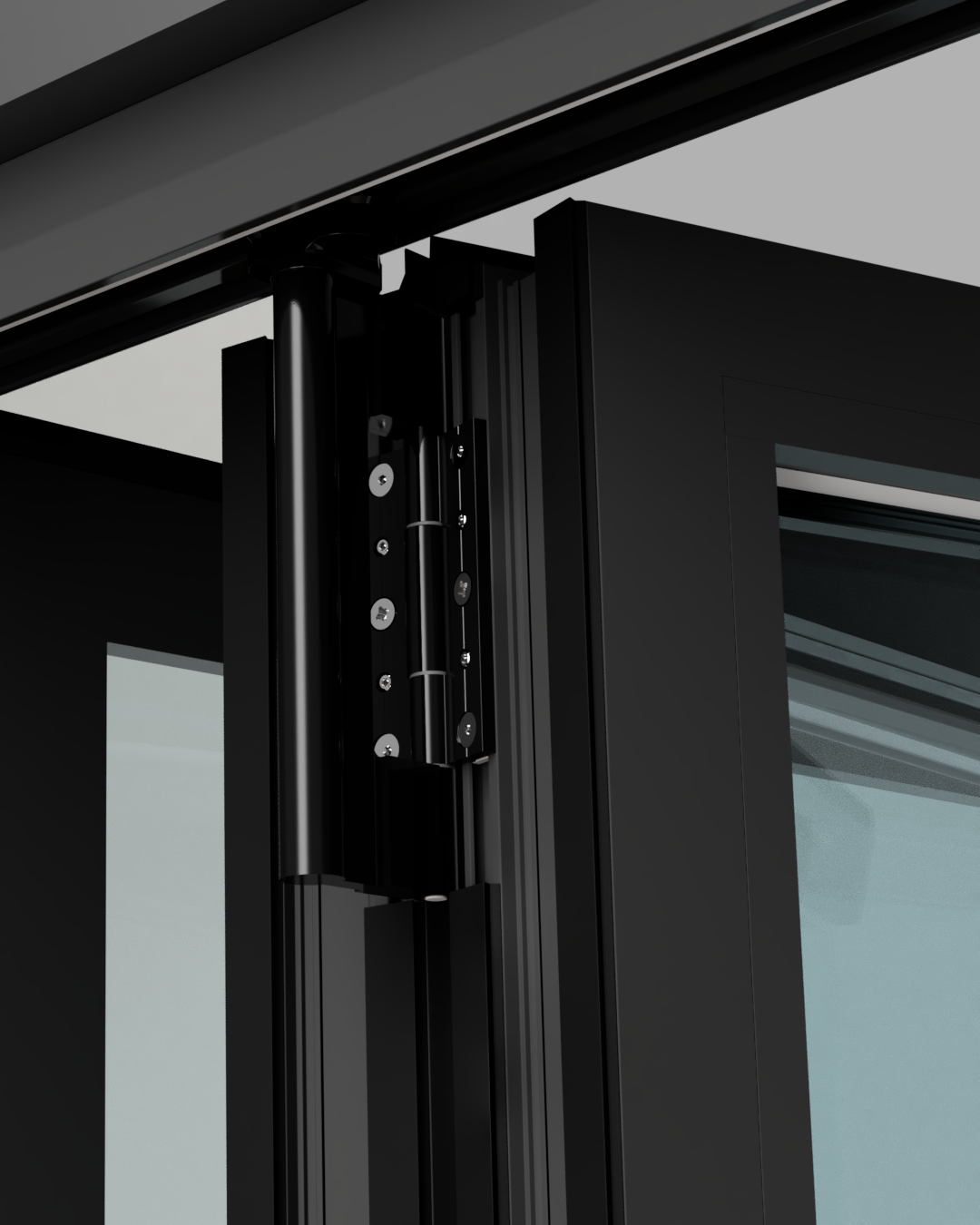

A top-hung bi-fold door system carries the weight of the doors from the head of the frame. The rollers and running gear are located within the top track, while the bottom track mainly acts as a guide to keep the panels aligned during operation.

Because the weight is suspended from above, the structural support above the opening becomes critically important. The lintel or structural beam must be capable of supporting not only the weight of the doors themselves, but also any load from the roof or wall above.

Top-hung systems are often chosen where a flush threshold is a priority or where designers want minimal disruption at floor level. They can create a very clean appearance and are sometimes preferred for internal applications or lighter door sets.

However, the performance of a top-hung system depends heavily on the quality of the hardware and the strength of the supporting structure. Without proper engineering and installation, issues such as instability, movement or operational resistance can develop over time.

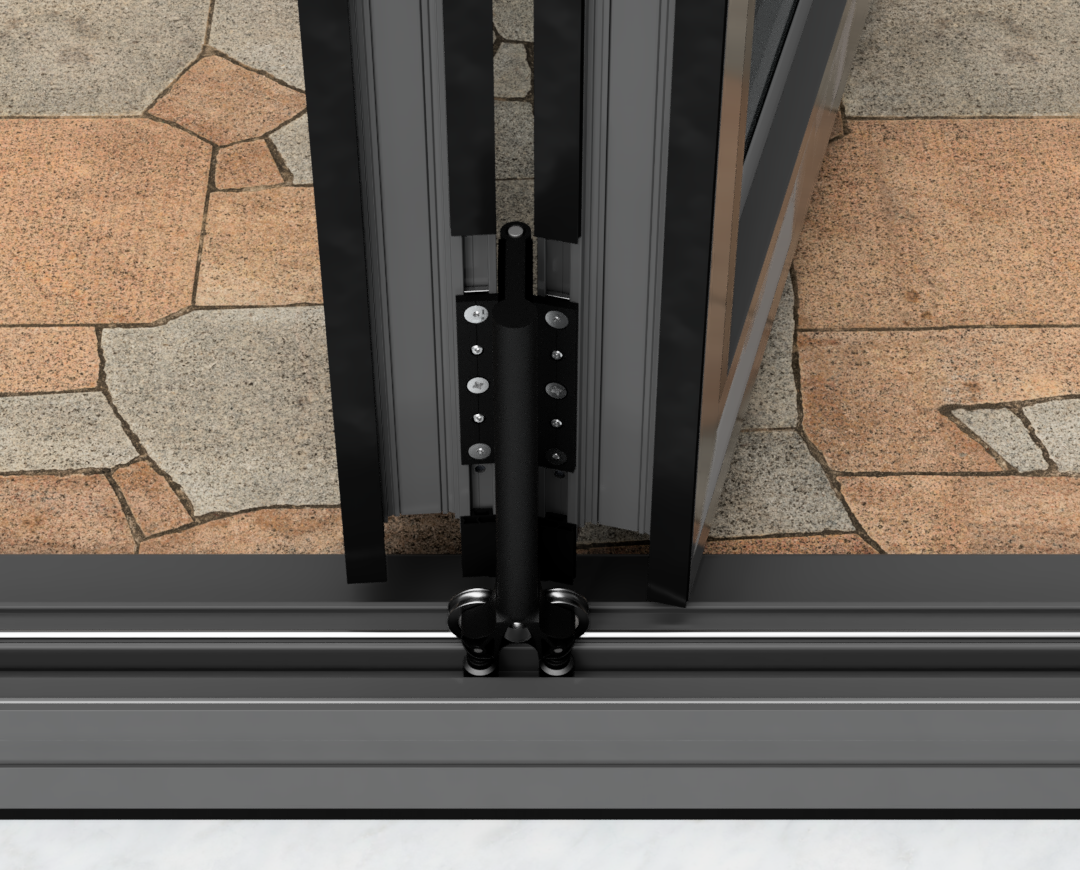

A bottom-rolling system works differently because the weight of the doors is transferred downward into the bottom track. The rollers run along the base of the frame, while the top track acts primarily as a guide.

This configuration creates a lower centre of gravity, which generally provides smoother operation and greater stability, particularly on larger or heavier door sets. Because the weight is carried at floor level, there is less structural demand placed on the lintel above the opening.

For many modern aluminium bi-fold systems, especially large installations, bottom-rolling systems have become the preferred solution due to their durability and ability to handle heavier panels with consistent performance.

At Debar, we have spent years developing specialist hardware and complete bi-fold systems designed to deliver smooth operation, long-term reliability and excellent structural performance across demanding applications.

One of the biggest differences between the two systems comes down to structural loading.

With top-hung systems, the head of the frame takes the majority of the load. This means the opening must have sufficient structural support above it. In new builds, this can often be designed in from the beginning. In renovation projects or older properties, achieving the necessary support may require additional structural work.

Bottom-rolling systems place most of the load onto the floor instead. This can simplify installation in certain situations and reduce the demands on the lintel. The floor itself must still be level and capable of supporting the weight correctly, but the overall structural requirements are often easier to accommodate.

This is one reason why bottom-rolling systems are commonly used for wider openings and larger glass panels.

Smooth operation is essential for any bi-fold door system. No matter how impressive the doors look, poor movement quickly becomes noticeable. Top-hung systems can provide a very light feel when opening and closing, particularly on smaller configurations. However, because the weight is suspended, hardware quality and precise installation become extremely important.

Bottom-rolling systems tend to offer a more stable and balanced movement, especially with heavier aluminium doors. The weight distribution helps reduce strain on the frame and often improves consistency over time.

The quality of rollers, guides, hinges and locking components also plays a huge role in long-term performance. At Debar, our focus has always been on developing hardware that delivers smooth operation while maintaining strength and durability across high-use environments.

Every bi-fold system requires maintenance to perform at its best, but the type of maintenance can vary depending on the running system. With bottom-rolling doors, the lower track can collect dirt, debris and dust over time because it carries the running gear. Regular cleaning is important to maintain smooth movement and prevent unnecessary wear.

Top-hung systems are less affected by debris at floor level because the rollers are located in the head track. However, they still require periodic inspection and maintenance to ensure the running gear remains aligned and operating correctly. In either case, high-quality hardware and proper installation make a significant difference to long-term reliability.

There is no universal answer because every project has different priorities. A top-hung system may suit projects where minimal floor interruption is important or where door panels are lighter and structural support above the opening is already available.

A bottom-rolling system is often the preferred option for larger aluminium bi-fold doors, heavy glazed panels and projects where long-term stability and smooth operation are critical.

At Debar, we work closely with fabricators, system houses and installers to help deliver the right hardware and system solution for every application. With more than 30 years of experience in bi-fold door system design and manufacturing, we understand how important the details are when it comes to long-term performance.

If you are specifying a new bi-fold door system or looking for expert advice on hardware and performance, the team at Debar is always happy to help. Get in touch today.
