The Simple Fix for
Dropped Doors

Fixing Bi-fold Door Drops Just Got Easier

Debar’s newest hardware component, the AdjustMaster Pro is the new answer to door drops, and a universal solution for many bi-fold systems. Unlike traditional toe-and-heeling, which requires removing the glazing bead and using packers, this system is DIY-friendly, quick to install, and ideal for long-term door alignment.

Why Use the AdjustMaster
Pro in Your Bi-fold Doors?

Save Time & Money

No need to send an engineer if the door drops. Customers can easily fix it themselves.

Increase Customer
Satisfaction

Quick and simple fix. Your customer gets an instant solution for a problem that could have taken days to sort.

Minimise Security
Risks

With a few simple turns of an Allen key, the door is instantly operational. This means the door will shut and lock with ease, keeping any security threats away.

Maximise Door
Performance

Futureproof your bi-fold doors by pre-installing a solution to a common problem and guarantee a bi-fold door that performs better, for longer.

How it Works

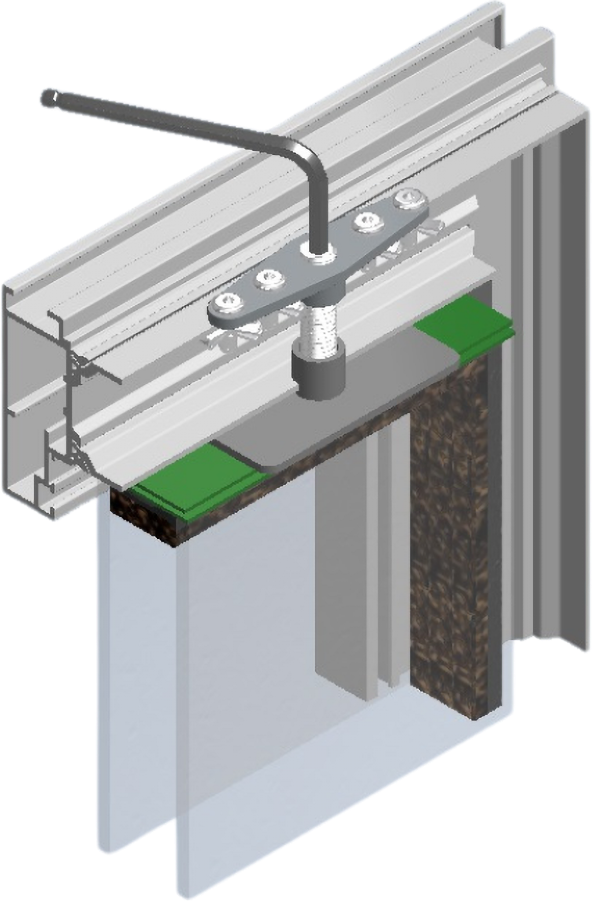

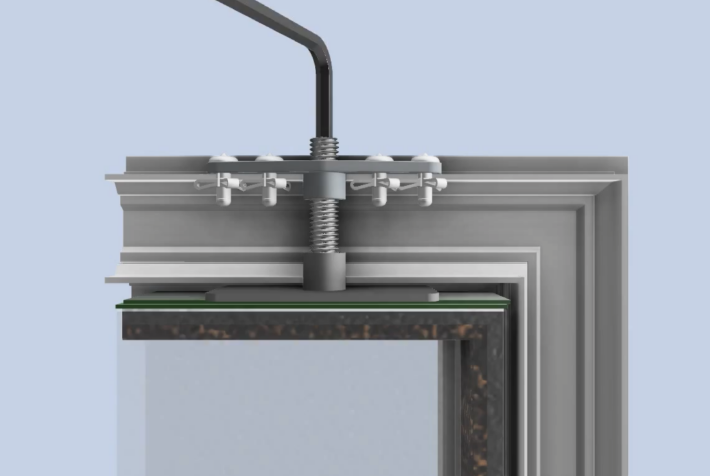

Suitable for any style of Bi-fold door, the AdjustMaster Pro is installed during the door’s build phase prior to glazing.

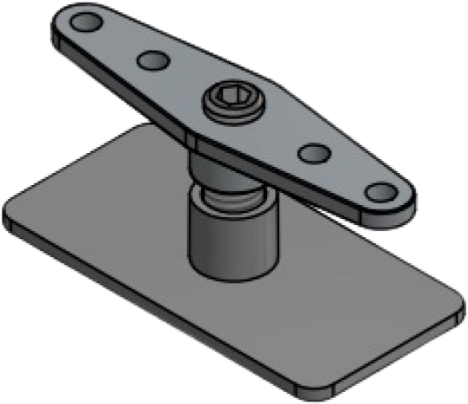

This innovative but simple to fit bracket sits on the top and underside of the door’s extrusion and consists of just four parts.

The four parts which make up the AdjustMaster Pro are: a nut, four rivets, a grub screw and a metal packer – which all come together to provide a stable, easy to use solution to dropped doors

In the event that the customer calls to report that their door has dropped you can guide them through the easy adjustment process. The only tool needed by your customer is a 4mm Allen key.

No service call out, no downtime, no extra cost, just one happy customer.

Order & Installation
Instructions

Step 1

Find the Right Size

We have a range of size screws to fit all systems. When determining which size you require there are two key measurements to take into consideration.

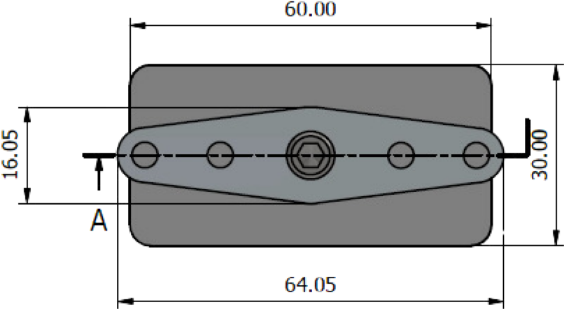

1 Choose the width of your polyamide

The AdjustMaster Pro is 19mm wide and would need to sit flat on the top of the profile.

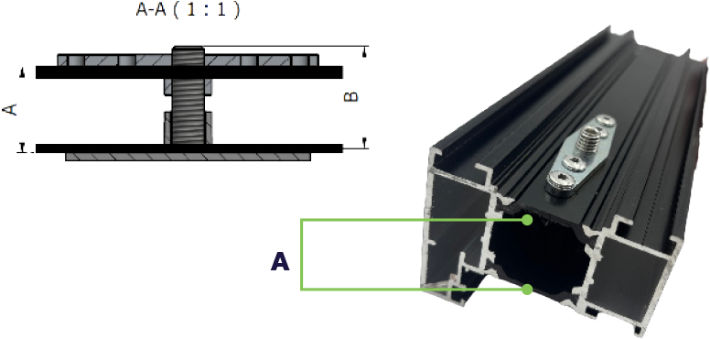

2 Choose the Polyamides - Measurement "A"

Measure the gap between the two polyamides, this is Measurement ‘A’. Refer to the table below to determine the correct SKU code to order.

Step 2

Choose What to Order

There are 2 parts to the glass adjuster; the adjuster and the screw. Both are sold in packs of 10. Part 1 is required.

Part 1 DBGA-001/10Part

Part 2 Match Measurement A to SKU Code Below

Measurement 'A'	Screw Size	SKU
22 – 26mm	30mm	DBS-GA-30mm/10
27 – 31mm	35mm	DBS-GA-35MM/10
32 – 36mm	40mm	DBS-GA-40MM/10
37 – 41mm	45mm	DBS-GA-45MM/10
41 – 46mm	50mm	DBS-GA-50MM/10

Step 3

Call Us and Place Your Order

If you need any help, our team is only a phone call or an email away.
